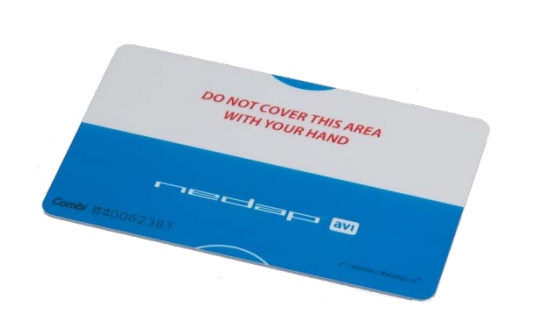

The Nedap 9943943 is a passive UHF ISO card for use in Nedap Upass readers, offering long range access up to 5 meters [16 ft] with uPASS Reach and 2 meters [6 ft] with uPASS Access.Features:
Thin, ISO card format - Identification up to 5 meters [16 ft] - One card solution for access control - Battery free - Security protected
Technical Specifications:
Operating frequency: UHF 850 - 950 MHz
Standard: ISO 7816, EPC Gen 2
Dimensions: 85 x 54 x 0.95 mm [3.4 x 2.2< 0.04 in]
Protection: IP54 [approx. NEMA 2]
Color: White Material: PVC
Operating temperature: -20 ... +50C [-4 +122F]
Detection range: UHF up to 5 m [16 ft] with uPASS Reach, up to 2 meters [6 ft] with uPASS Access
Detection range access card: few cm, depending on applied reader and card technology
Humidity: 10% ... 93% relative humidity, non condensing
Other part numbers: 779022
